Gerber Viewer

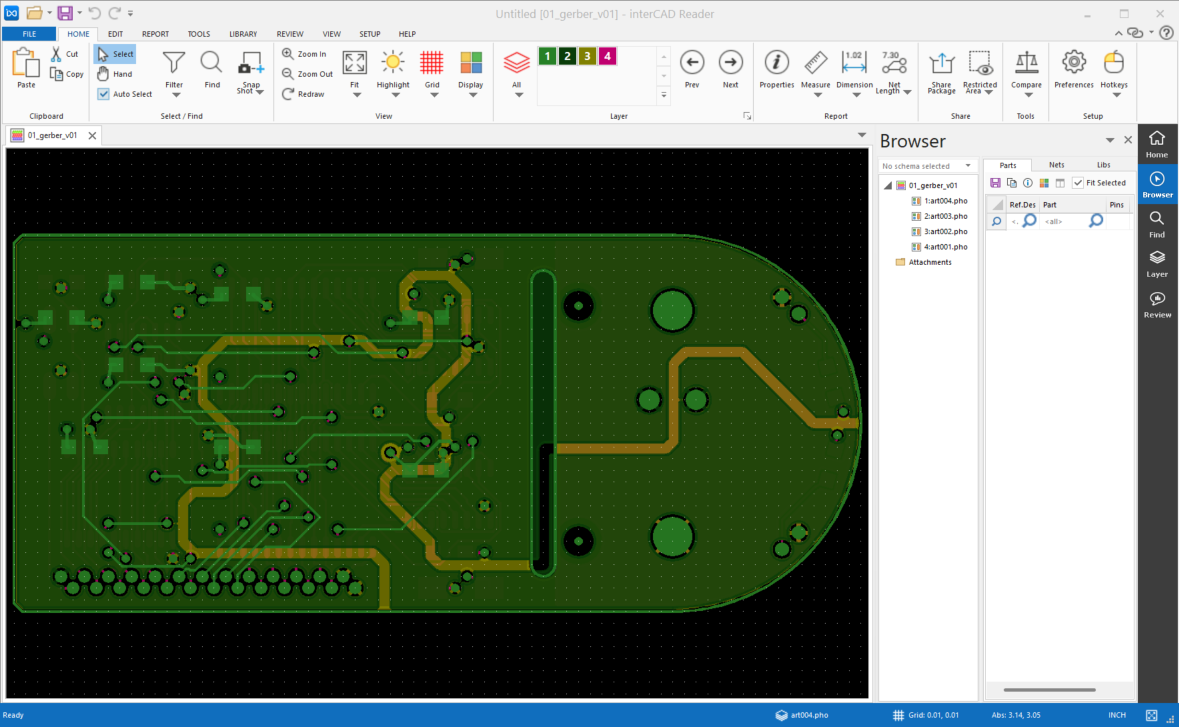

Gerber Viewer is a viewer designed to visually review Gerber data used in the PCB manufacturing process. It clearly visualizes manufacturing layer information such as copper, solder mask, and silkscreen, allowing for effective design quality review and pre-manufacturing data verification.

View other supported

Date: Aug 25, 2025 Size: 18.4Mbyte
By downloading, you agree to the Terms of Use.

Import file format

Gerber Viewer supports various Gerber data formats as follows.
It supports various Gerber output formats widely used in industrial fields, providing versatility and compatibility.

274X
gbr
pho

Review

Provides a Review function that allows you to write comments directly on the drawing.

Click-based annotation insertion
Real-time feedback and review history management
Improving information delivery in collaborative environments

Hotkey

Gerber Viewer supports the same mouse-based operation used in many ECAD tools, and also supports user-defined settings.

Snapshot

You can create a snapshot of a designated area of the screen, and the image will be automatically copied to the clipboard.
The copied image can be immediately pasted into various documents and tools, such as the following. Sharing and documenting design review results is done quickly and efficiently.

Additional features

Measurement

It can accurately measure distances between circuits, component spacing, sizes, etc.

Highlight

Click on the desired component, net, trace, etc. and only that item will be visually highlighted. Even in complex designs, you can quickly track down just the information you need.

Features that are more useful when used together

IXD

Easy drawing sharing and collaboration

Security

Safely protect and share your drawings
