Allegro Translator is a specialized solution that accurately and efficiently converts design data created in other ECAD tools into Cadence's Allegro environment. This product minimizes errors during data conversion and maintains design data in its original state as much as possible, allowing you to immediately take advantage of Allegro's powerful design features.

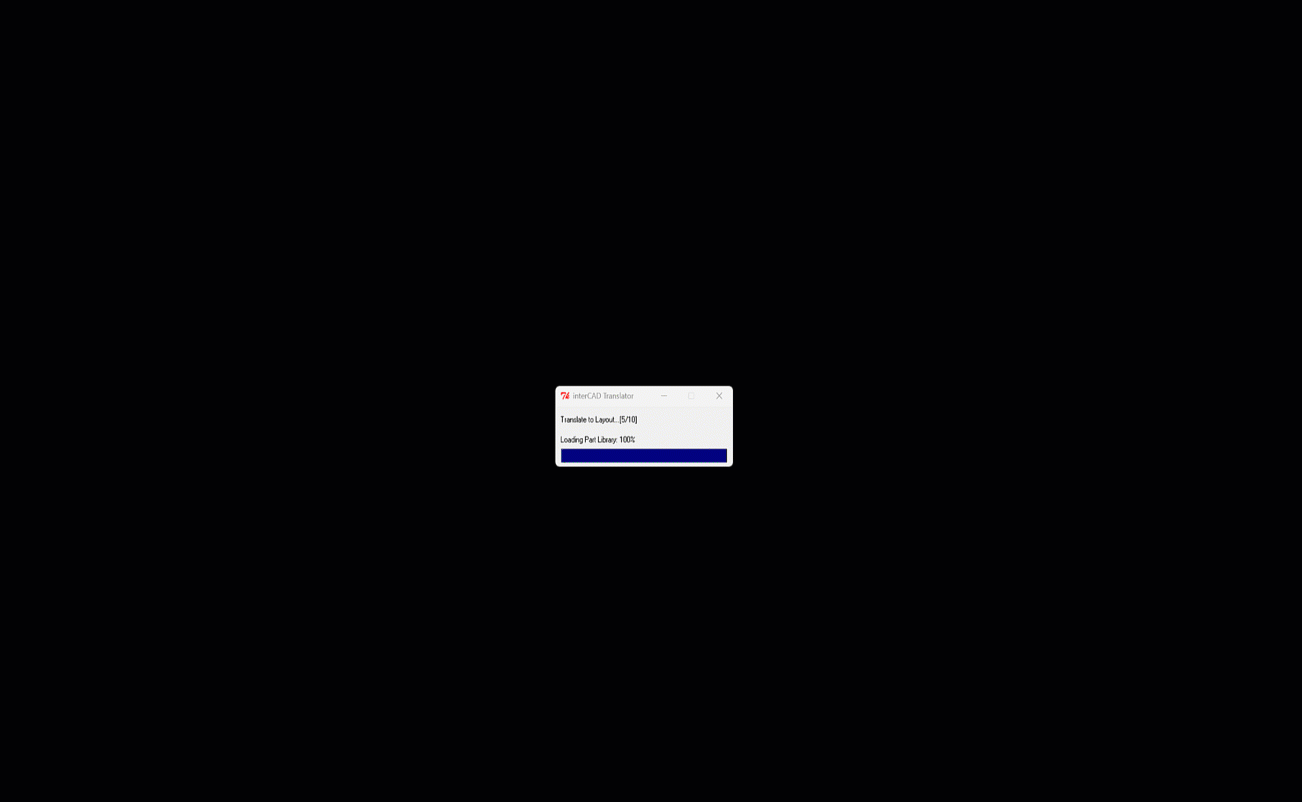

The Allegro Translator converts libraries of parts and footprints built in existing ECAD systems into the Allegro environment, allowing them to be immediately integrated into the Allegro design process without any additional work.

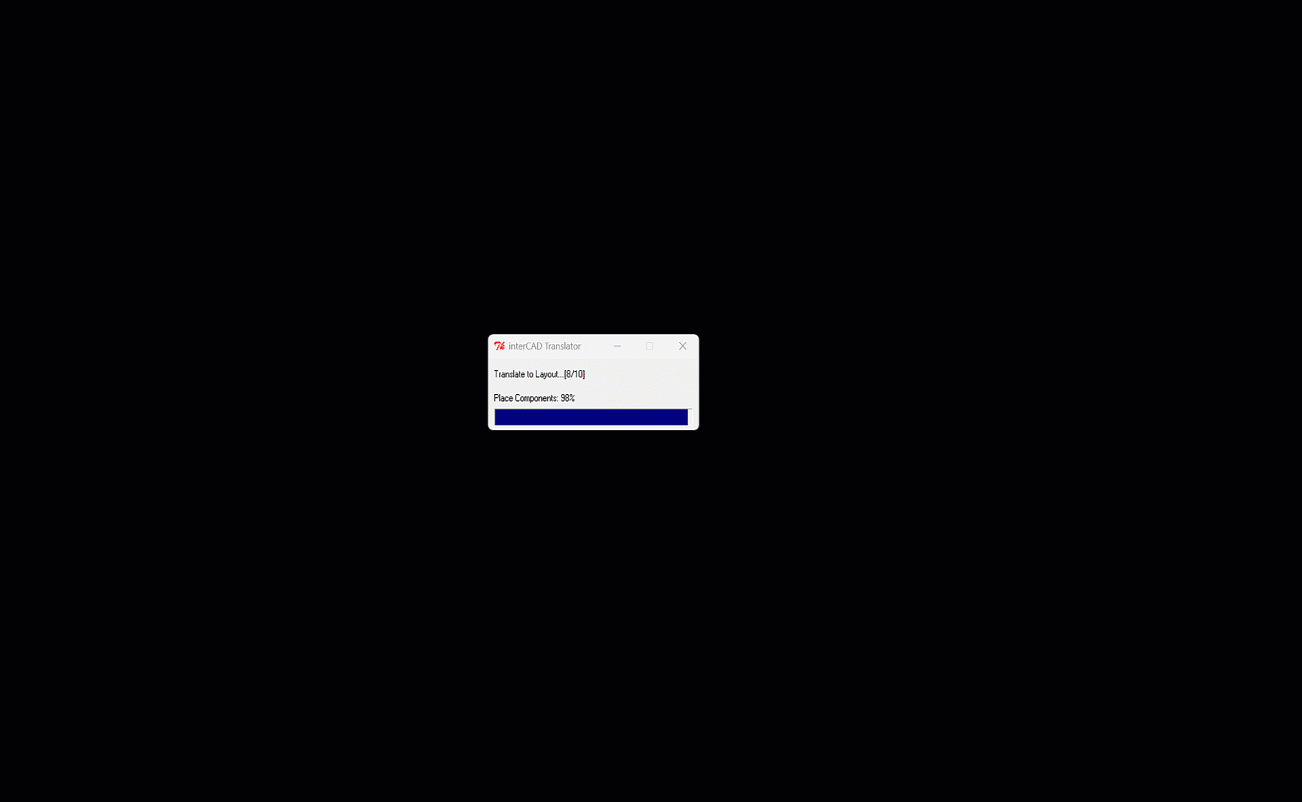

The layout information of parts defined in the original ECAD tool is maintained intact through the Allegro Translator, allowing designers to immediately review and utilize them in the Allegro environment.
Allegro Translator allows you to immediately apply Design Rules from the Allegro design environment, increasing design accuracy and reliability.

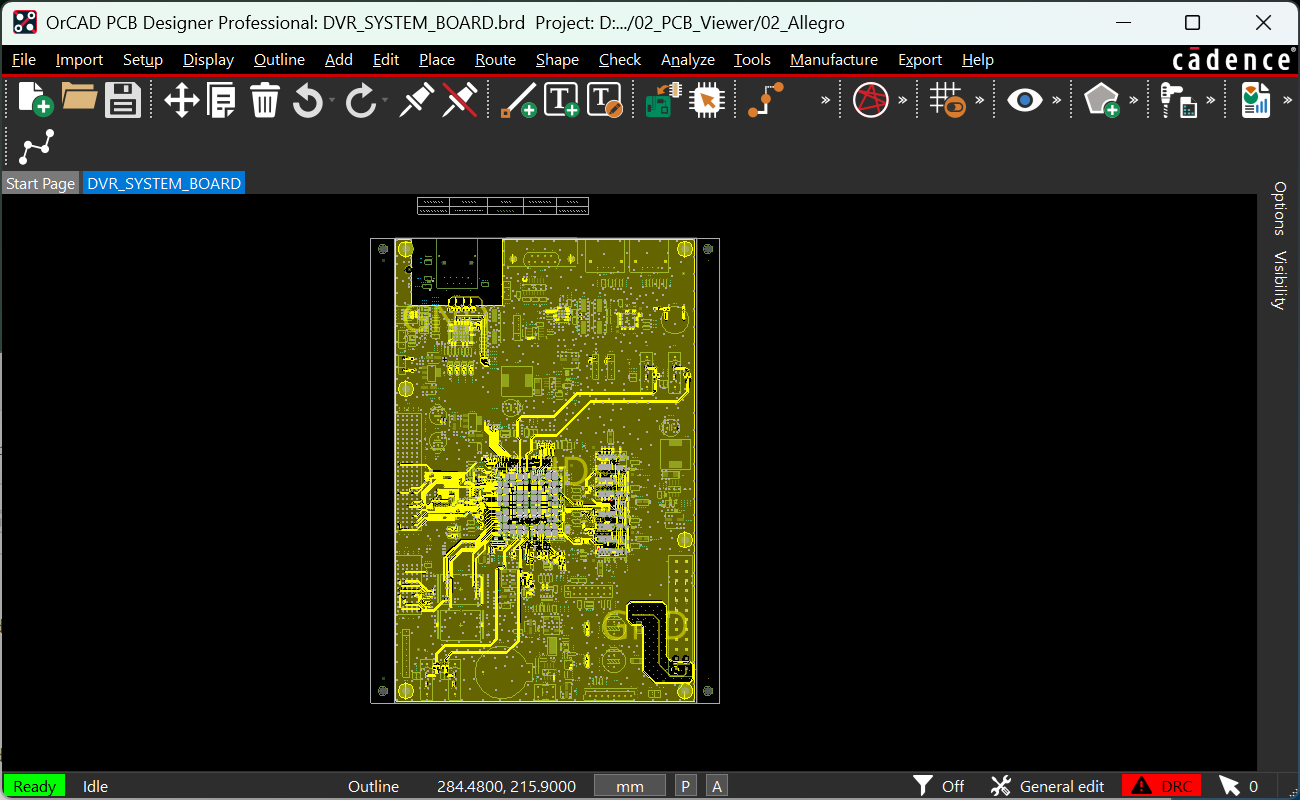

Wiring information such as routing and copper fill is converted identically to the original via the Allegro Translator. This allows for seamless verification and further design work in the Allegro environment immediately after conversion.
Familiar environment, powerful performance, and one-click start.
