Gerber Compare

Gerber Compare is a professional design comparison solution that accurately analyzes the differences in geometry (graphic information) and attributes (attribute information) by comparing various ECAD designs such as PCB, Gerber, ODB++, etc., and supports intuitive confirmation of differences between designs through a list of items and graphical displays. Supports bidirectional comparison between Gerber, PCB, and ODB++.

View other supported

Date: Aug 25, 2025 Size: 18.4Mbyte
By downloading, you agree to the Terms of Use.

Layer unit comparison

Gerber Compare allows you to compare entire ECAD designs, as well as select specific layers to compare between designs.

Select Layer
All Layer

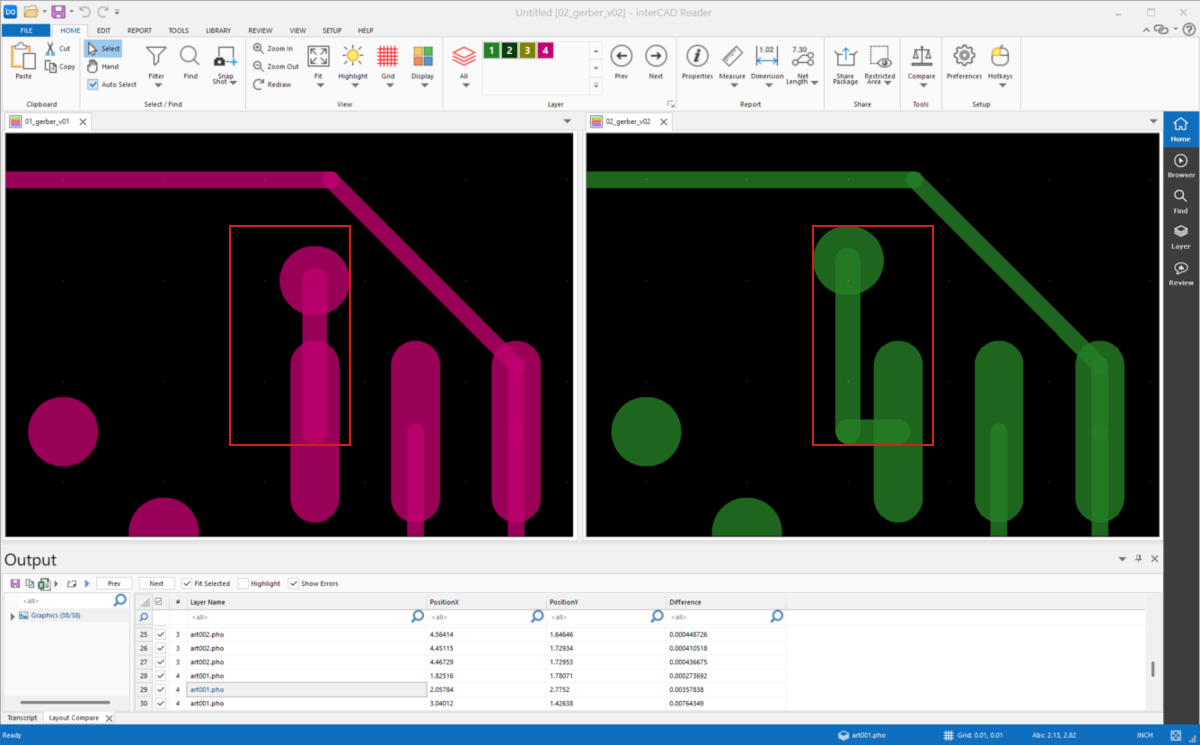

Graphic-based comparison

Gerber Compare provides a clear image-based comparison of the geometry (graphic information) differences between ECAD designs. You can directly visualize the morphological differences between desired layers to review design changes more intuitively.

Automatic Highlight & View matching

Gerber Compare automatically highlights any differences it finds, making them clearly visible.

Output

The differences between designs analyzed by Gerber Compare are provided in Excel format. This can be effectively utilized in tasks such as creating work instructions or managing design change history.
