interCAD® 365
- interCAD® 365 is a special subscription service that offers all interCAD® products 365 days a year at a reasonable price.
- SMEs⑴ - (Company with annual sales of $150M or less)
Main function
Simple and Intuitive Schematic and PCB Data Check
-
With the same performance as the ECAD design tool, you can check design data without a dedicated design tool.
Link with OrCAD Capture, PADS Designer, Xpedition Designer are supported, and cross- navigation and selection are available while bringing the Schematic and PCB at the same time.
Supported data formats

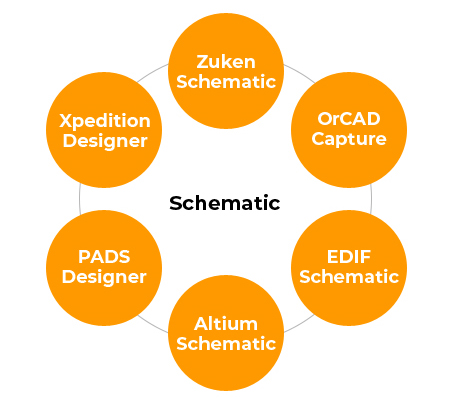

Supported Schematic Formats

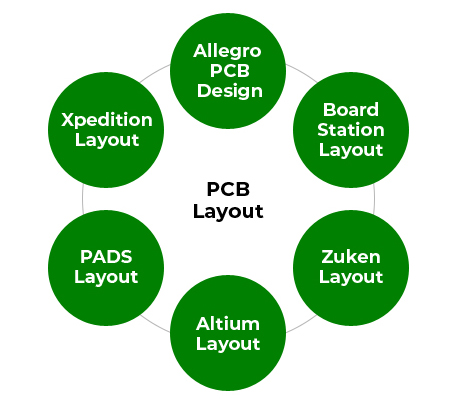

Supported PCB Formats

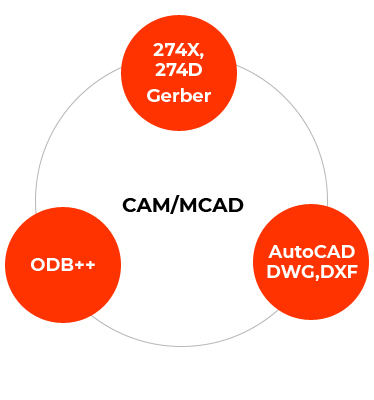

CAM/MCAD
Quick search and check net length, trace width, component properties and dimensions
-
Even if you are not a design expert, any user can easily and accurately search ECAD design data and check net length, trace width, component properties, and dimensional information.
- Easy/convenient layer setting through Quick Menu
- Search for parts/nets
- Select parts/nets and check information
- Measure parts/nets distance

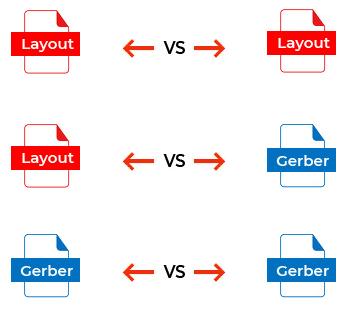

Compare Design Data
- Easily find differences between current design and previous design with a single click.
RefDes Silkscreen Overlap Checking (DFM)
-
Design errors can be reduced by visually verifying design errors which may occur during PCB manufacturing.
- Inspect overlapping of Silkscreen, Solder Mask, and Drill Hole
- Inspect RefDes Text Size
- RefDes difference order check of parts
- Inspect RefDes Mirror depends on the arrangement of parts
- Inspect Reference parts
Safe and easy sharing of design data
-
For collaboration, shared/distributed EDA design documents can be encrypted so that unauthorized users cannot read or print them.
- Password and date restrictions
- Prevent screen capture and printing
- Filtering MAC address
- Hide component/net property values
- Create EXE file contains viewer and data
- Create an IXD file that can be opened by interCAD Reader
The Most Complete PCB Translator
-
PCB design data read through interCAD Editor can be completely converted without errors or cracks.
- PADS Layout
- Allegro PCB Designer
- Board Station Layout
- Xpedition Layout (will soon update)
- Altium Designer Layout (will soon update)
- Zuken Layout (will soon update)
Products installed by default in interCAD 365
interCAD® Basic
Between several types of design tools, ECO (To-Layout), Cross-Probing, Forward Annotation can be supported. No error design can be prepared by verifying causative human errors.
It is software that can innovatively shorten the design speed by providing automotive functions that can not supported by ECAD tools.
interCAD® Wizard
If you input the geometric information of a circuit part, an ECAD library of the part is automatically created. It allows development engineers to create a standard library without having low quality of development and human errors. (will soon update)
interCAD® 365 subscription service
| Target | SMEs (company’s annual sales of $150M or less) for incumbent employees |
|---|---|
| License | Noded-Lock Type (MAC Address of the PC to be installed) |
| Contract | Replaced by End-User License Agreement (EULA) in the installer |
| Sale | 10% discount for 3 accounts (or more) and over a year |
| Payment | Payment is possible for annually (e-tax invoice can be issued) |
| Maintenance | All technical support (visit or remote) is provided free of charge during the subscription service period |
| Exclusion | If you are a medium-sized company or a large company, please contact support@interxsoft.com. |
-
Try the interCAD® 365 subscription service today!
E-mail: sales@interxsoft.com Tel: +82 (0)70-8856-2412
-
